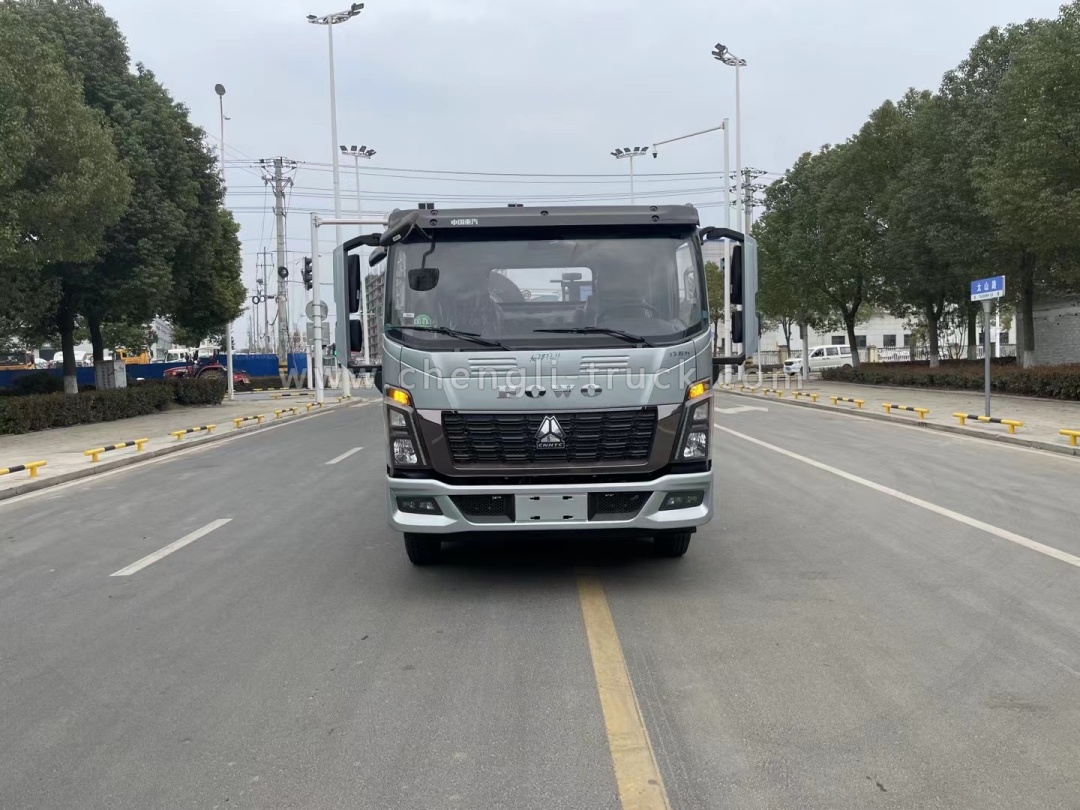

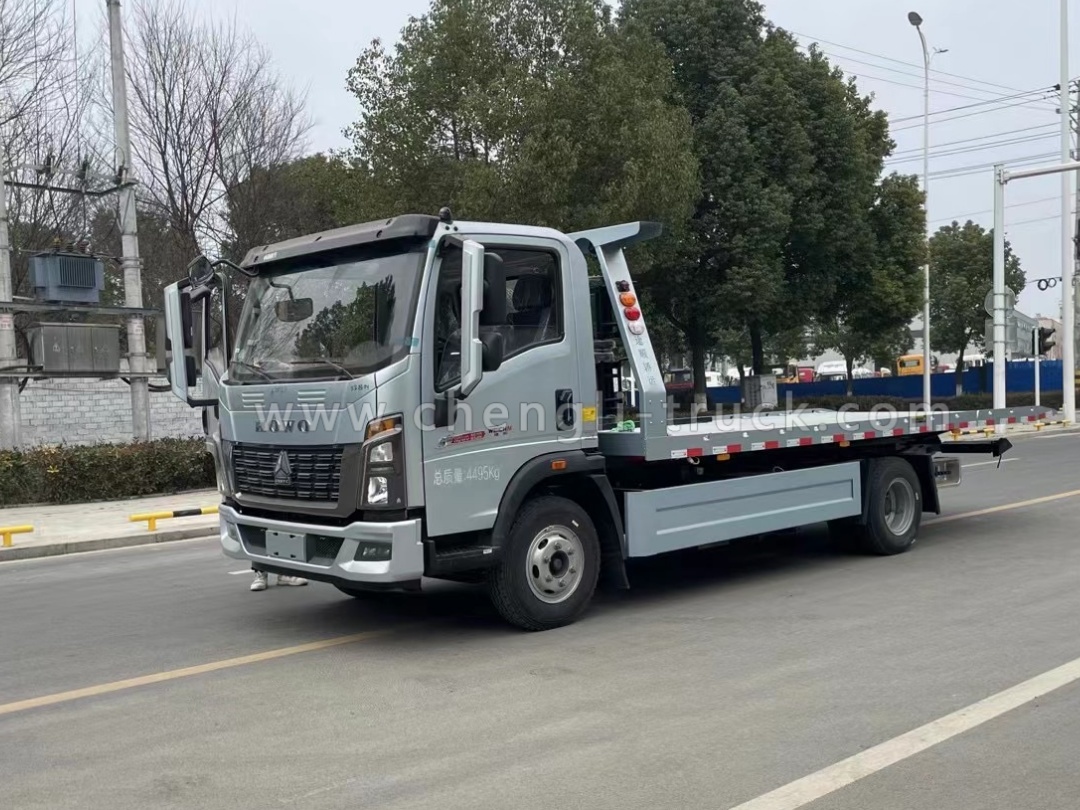

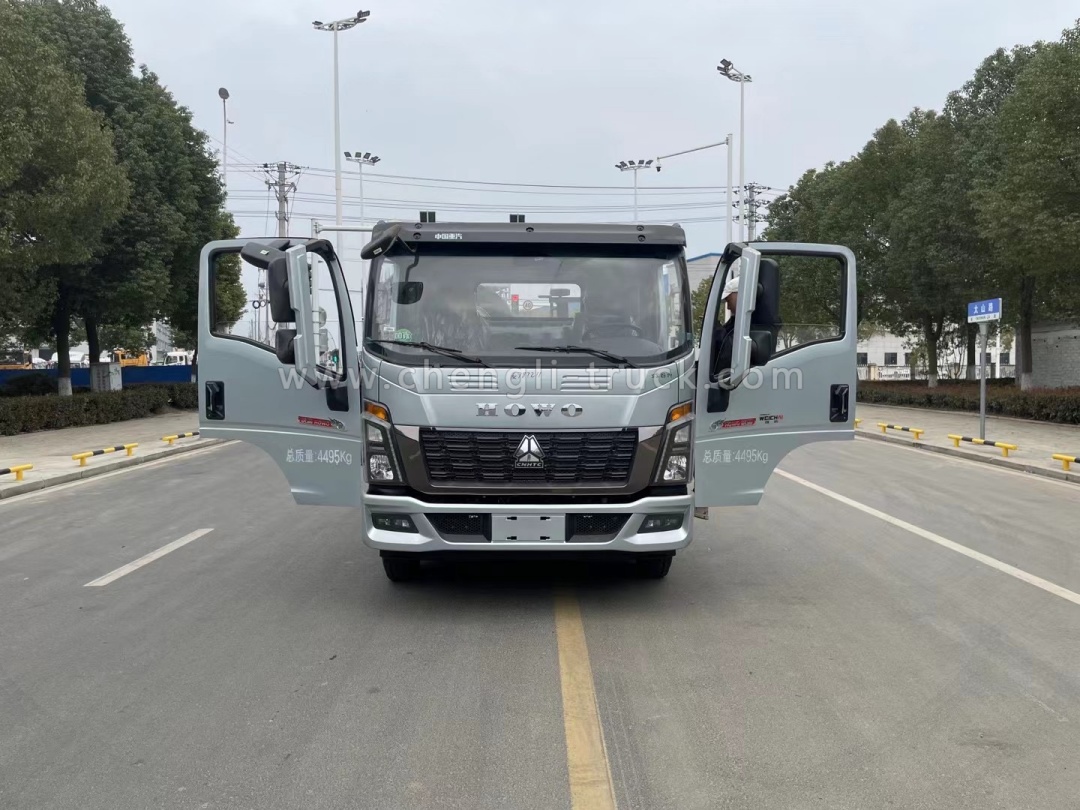

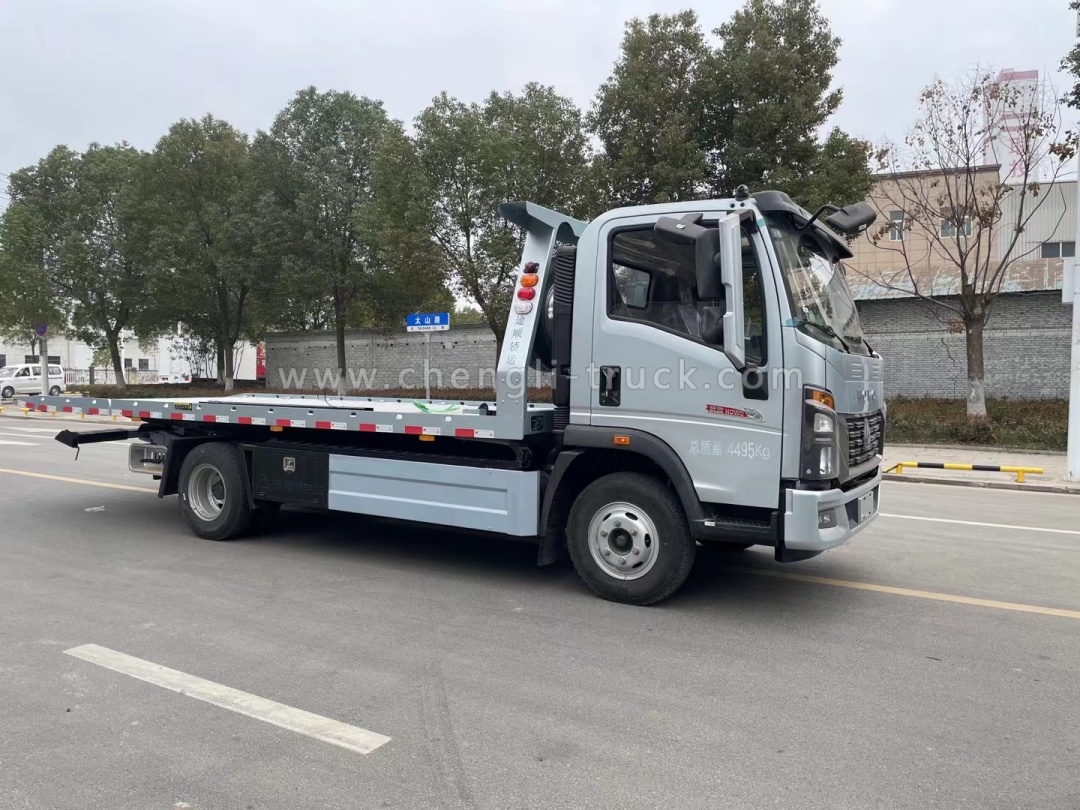

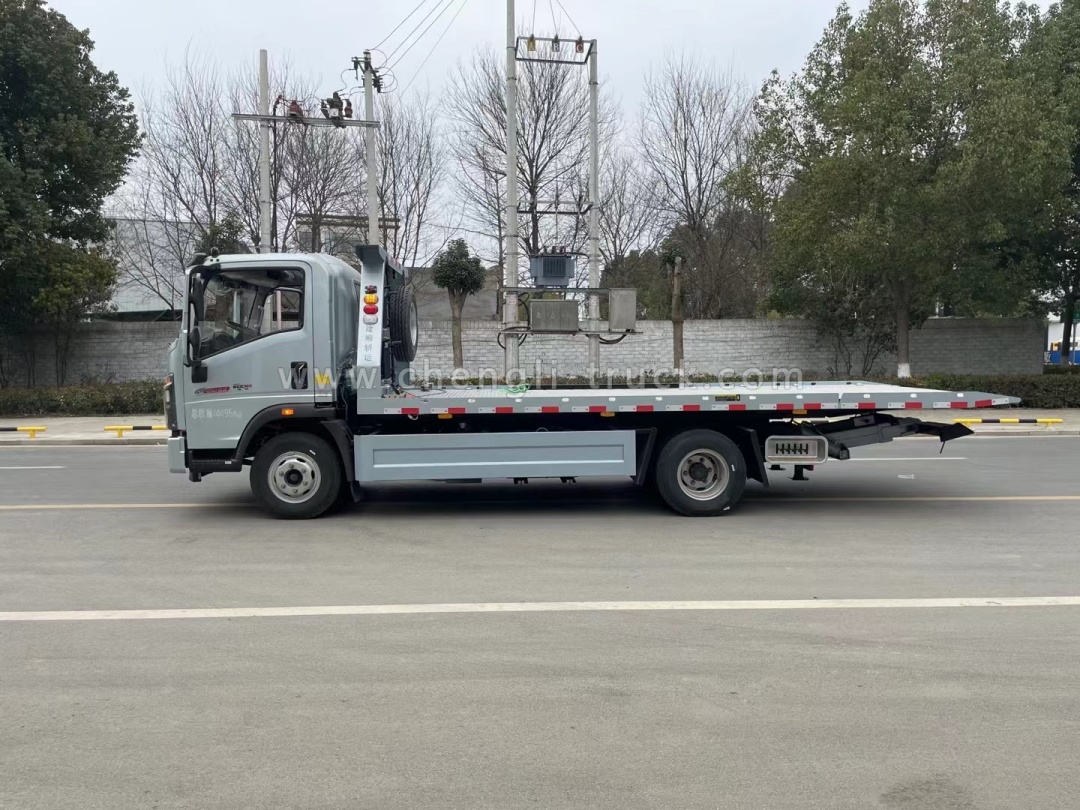

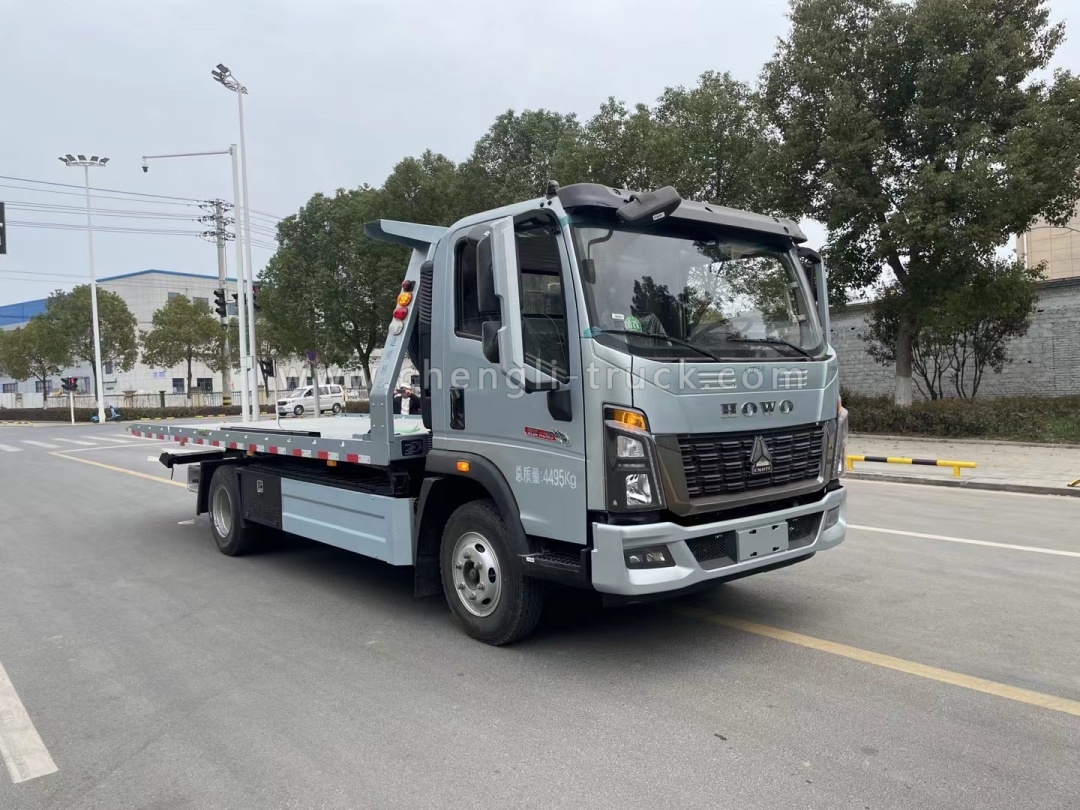

HOWO platform 5600*2300 tow truck tray 4 ton hydraulic winch 4x2 flatbed wrecker
- HOWO
- Suizhou city,Hubei province,China
- 150HP
- 3360
HOWO platform 5600*2300 tow truck tray 4 ton hydraulic winch 4x2 flatbed wrecker
| ITEM | UNIT | DESCRIPTION |
| Vehicle | HOWO tow truck wrecker | |
| Overall dimension | mm | 7470*2350*2440 |
| Flatbed dimension | 5550*2300 | |
| Curb weight | kg | Appro*4910 |
| Flatbed loading weight | Appro*4000 | |
| Carriage arm loading weight | Appro×*3000 | |
| Wheel base | mm | 3800 |
| Front/Rear overhang | 1210/2460 | |
| Approach/departure angle | ° | 24°/10° |
| Standard configuration | 1) 4 tons winch 1 set | |
| 2) Auxiliary wheel 2pcs | ||
| 3) Rear towing arm assembly 1 set | ||
| 4) Steel wire rope 25m | ||
| 5) Bunding belt 4pcs | ||
| 6) Rear tail lights LED,both sides electronic lights. | ||
| 7) Tool box | ||
| Working Performance | 1. It can tow two cars. | |
| 2. Hydraulic control flatbed and carriage arm,with hydraulic operation lever. | ||
| 3. Winch speed : 8m/min. | ||
| 4. Flatbed working stroke: 2680mm | ||
| 5. Flatbed minimum tilt angle: 10° | ||
| 6. Carriage arm telescopic stroke: 1180mm | ||
| 7. The max effective length of the carriage arm: 1300mm | ||
| Chassis Parameter | ||
| Cabin | Single row cabin,air conditioner,power steering, cabin roof warning light, 3 passangers | |
| Drive type | 4*2,left /right hand dirve | |
| Engine | Brand : HOWO | |
| Model :CY4102-E3C, 120hp | ||
| Type : diesel, 4 cylinder, turbocharged, intercooled. | ||
